Supria True 64

An economy CT that provides high levels of image quality, the latest dose awareness, reduction and management features and a compact footprint with increased patient access.


Fuji Supria True 64

Overview

Outstanding Comfort and Experience For Your Patients

Supria models are designed with the patient in mind. Their large aperture, long table with high weight capacity comfortably accommodates patients of all sizes up to 500 lbs.

The latest Fujifilm dose reduction technologies* surpass the XR-29 Smart Dose Standard. A larger 75cm gantry aperture, wider 47.5cm table with a long 180cm scannable range result in a more positive patient experience.

*In clinical use, dose saving features may reduce CT patient dose depending on the clinical task, patient size, anatomical location and clinical practices employed. Consultation with a radiologist and physicist are recommended to determine the appropriate dose needed to obtain diagnostic image quality for a particular clinical task.



Advanced Features

Remarkably Compact Design
  1. Image Processor Cabinet
  2. Gantry
  3. Table
By minimizing siting costs, incorporating improved workflow processes and maximizing patient comfort, your investment in Supria translates into a faster return on investment.

Fuji Supria True 64
Fuji Supria True 64

High End Imaging & Performance
Patient-centric design coupled with the engineering excellence of Supria puts you in control without compromising imaging performance.
  • Wide 75cm Aperture makes for a more comfortable environment for the patient
  • 500 lb weight-capacity table accommodates larger patients
  • Long Scannable range of 180cm for long coverage exams of tall patients with a single injection
  • Intuitive user interface

Lower Dose Capabilities

Smart Dose (XR-29) Compliant
All new Fujifilm CT systems are designed to meet ALARA practices as well as complying with the new XR-29 Smart Dose Standard. Supria comes standard with the latest dose reduction, monitoring and reporting capabilities required by XR-29:
  • Automatic Exposure Control – Intelli EC (3-D)
  • Pediatric and Adult Reference Protocols
  • DICOM Dose Structured Report
  • CT Dose Check (XR-25)
Supria models surpass the XR-29 standard by adding: Intelli IP Quick – Iterative Reconstruction

Fuji Supria True 64
Fuji Supria True 64

Intelli IP Quick - Iterative Reconstruction
Fujifilm’s latest workflow enhancing, proprietary engine that makes use of adaptive iterative reconstruction in both projection and image space. Its use reduces pixel noise at a given level of mAs as compared to filtered back projection without Intelli IP Quick.

Simple Dose Report
Provides a dose report embedded in the image series, available whenever and wherever the images are viewed.

Fuji Supria True 64
Fuji Supria True 64

Locked Protocols
Protects protocols from unintended changes (unless an authorized password is used) to ensure more consistent imaging results and avoid unintended dose changes.

Reduced kV Imaging
Allows selection of the lowest appropriate kV for the individual patients’ size — supports scanning at 80, 100, 120 or 140kVp.

Fuji Supria True 64


Image Gallery

Fuji Neuro

Neuro

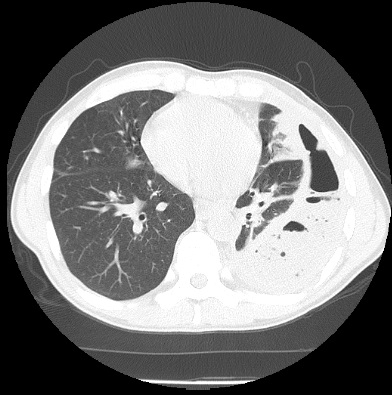

Fuji Body

Body

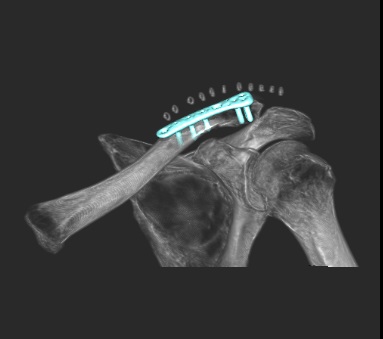

Fuji Musculoskeletal

Musculoskeletal



Technology

Scan Paramaters
  • Slices: 64, with 128-slice FineRecon option
  • Rotation times (seconds): 0.75, 1.0, 1.5, 2.0
  • Data collection speed: 1,200 views per second
  • Minimum Slice thickness (mm): 0.625
  • FOV (mm): 20-500
  • Max scan range (in/mm): 71/1800
  • Max scan rotations: 100
  • Volume scan pitch: 0.578 to 1.578

Scan Acquisition Times
  • Scanogram with real-time display – AP & Lateral
  • Normal scan - axial mode
  • Volume scan - helical mode With or without Orbital Synchronization
  • Dynamic Scan mode for Time Density Analysis

Gantry
  • Gantry aperture: 75cm
  • Gantry tilt: +/- 30 degrees
  • Gantry Display: Digital Panel
  • Scan localizer

X-Ray Detector
  • Type: Solid state ceramic
  • Coverage: 40mm with 64 rows and 64-electronics channels (True64 – DAS)
  • Detector elements: 64 x 888 = 56,320

X-Ray Tube
  • Anode heat capacity: 5.0MHU
  • Anode max. cooling rate: 748kHU/min
  • Tube cooling: Oil/Air
  • Focal Spot (mm): 0.7 x 0.8; 1.2 x 1.4

Header: X-Ray Generator
  • Output: 48kW
  • kVp selection: 80, 100, 120, 140kV
  • mA selection: 10-400mA (5mA steps)

Patient Table
  • Table-top width: 19in (475mm)
  • Table weight capacity: 500 lbs (227kgs)
  • Horizontal accuracy: ±0.25mm
  • Vertical travel range: 18in (450mm) to 39in (1000mm)
  • Scannable range 180cm

Operators Console
  • Display: single 24-inch LCD widescreen monitor
  • Display resolution: 1920 x 1200

Image Reconstruction
  • Matrix: 512 x 512
  • Immediate Preview Recon
  • Reconstruction time: up to 22 images/second (depending on recon parameter)
  • Iterative Reconstruction: Intelli IP Quick
  • CT number range: -32,768 to +32,767

Dose Reporting
  • Simple Dose Report
  • DICOM Dose Structured Report (SR)
  • CT Dose Check (NEMA XR-25)
  • NEMA Smart Dose Compliant (XR-29)

Siting
  • Minimum room size: 250 Sq. Ft.
  • Typical room size: 340 Sq. Ft.
