Legacy MRI

Performance and Value… Standard

Overview

Echelon delivers excellent image quality and RF fat saturation with workflow advantages in patient setup, motion compensation, and image processing. With the short-bore gantry and small footprint, Echelon offers a simple solution for customer’s upgrading or replacing equipment.

A staple of performance in many imaging centers, Echelon has established a long track record of operational reliability along with patient comfort and safety.

• 1.5T superconducting magnet with high performing 33/150 gradients
• 8 or 16 channel RF receiver with a wide range of coils
• 50cm FOV in all axes

High quality, whole body imaging applications that matter most to your practice.

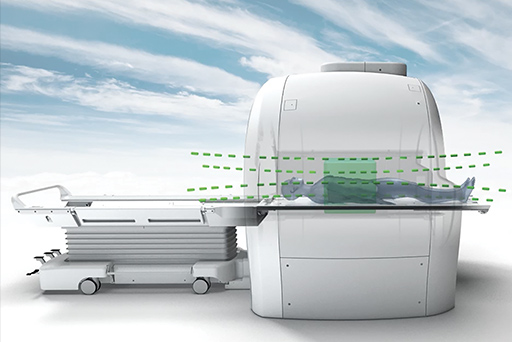

Guaranteed Homogenity
Echelon a large highly uniform imaging volume - combined with Fujifilm’s HOAST patient specific higher order shimming capability.

Patient Comfort
The large, high-capacity patient table comfortably supports a broad range of body types.

Siting
Echelon’s design attributes make it accommodating to existing facilities and easily planned into new construction.

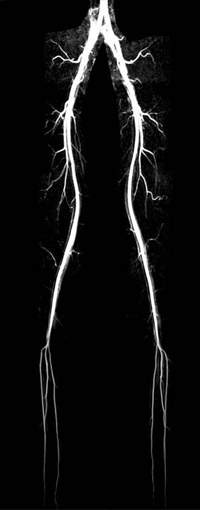

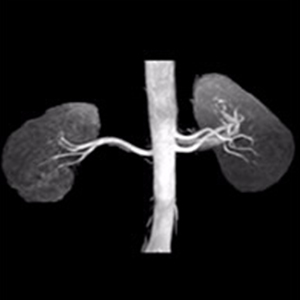

Vascular

View More Images

×

Vascular

1 / 4

Vascular

2 / 4

Vascular

3 / 4

Vascular

4 / 4

❮ ❯

Echelon supports the diverse demands of MR Angiography (MRA) and MR Venography (MRV) imaging with techniques designed for ease of use to simplify the acquisition process, while sophisticated image processing tools provide 3D visualization of vasculature.
With the importance of non-contrast imaging, Echelon offers multiple MRA solutions that reduce cost and risk.

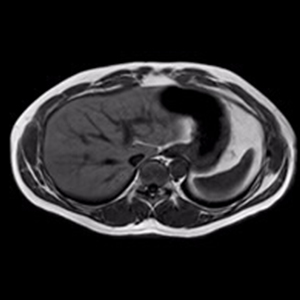

Body

View More Images

×

Body

1 / 4

Body

2 / 4

Body

3 / 4

Body

4 / 4

❮ ❯

Body imaging requires short breath-hold times with extended coverage, dynamic imaging with high temporal and spatial resolution, and flexible motion compensation.

Configured with a breadth of sequences and protocols for Breast, MRCP, Enterography, Prostate, and female Pelvis, Echelon is up to the challenge.

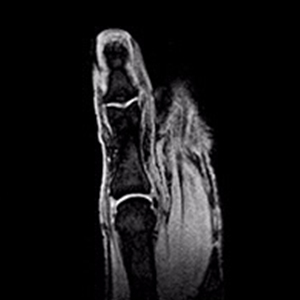

Musculoskeletal

View More Images

×

Musculoskeletal

1 / 5

Musculoskeletal

2 / 5

Musculoskeletal

3 / 5

Musculoskeletal

4 / 5

Musculoskeletal

5 / 5

❮ ❯

Echelon provides high quality, thin slice, small field of view imaging all supported by high order active shimming technology (HOAST) for uniform fat saturation.

With effective and standard solutions for fat suppression and metal artifact reduction, Echelon delivers a versatile imaging suite for your day-to-day MSK imaging needs.

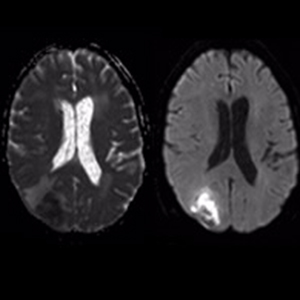

Neurology

View More Images

×

Neurology

1 / 4

Neurology

2 / 4

Neurology

3 / 4

Neurology

4 / 4

❮ ❯

Imaging of the prostate requires multi-sequence, multi-parameter fast scanning and efficient protocols to get the most out of the images. Fujifilm’s ProstateDrive accommodates for motion and facilitates dynamic imaging with key functionality:

• RADAR motion compensation


• TIGRE and RF Spoiled Gradient Echo sequences acquired in less than 10 seconds
• Multiple b-value DWI with adjustable NSA in a single acquisition eliminating multiple sequences
• Pi-RADS compliant
