OTC18T System

Del Medical OTC18T System

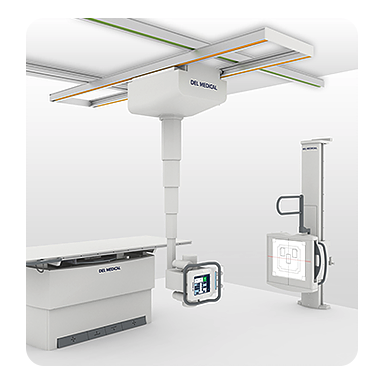

Premium overhead tube crane system with LCD touchscreen and optional vertical tracking







Versatile and Intuitive
The OTC18T Radiographic System delivers enhanced patient comfort and optimized workflow. Precisely designed to withstand high volume throughput in hospital radiology departments, medical imaging centers and large orthopedic facilities, the OTC18T performs exceptionally well in a broad range of radiographic studies.



Del Medical OTC18T

Flexible Positioning

The OTC18T tube crane highlights an advanced, technologist friendly 10.4" touchscreen console which provides seamless system integration by displaying tube angulation, SID values, and generator control options. Color-coded movement identification buttons provide optimal precision when setting up views. Peaceful and effortless movements are controlled by an electromagnetic braking system enabling fast and secure readjustments of the tube head. Its five-tier telescoping column delivers exceptional vertical movement of 71” (180 cm), capable of performing complete head-to-toe radiographic procedures including upright weight bearing and recumbent table top exams.



Del Medical OTC18T



Intuitive Control

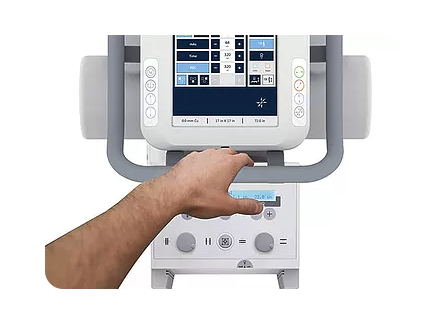

A conveniently placed all-lock release sensor is located just above the bottom section of the tube head handle. This sensor enables rapid manual positioning by allowing the user to simply grab the bottom handle to unlock the system and make swift adjustments.



Del Medical OTC18T

Auto-Collimation

Accelerates patient positioning and reduces radiation exposure by automatically selecting the proper field-of-view for each body part. This feature is available through the DelWorks DR acquisition software’s pre-programmed APR settings.



Del Medical OTC18T



Vertical and SID Tracking

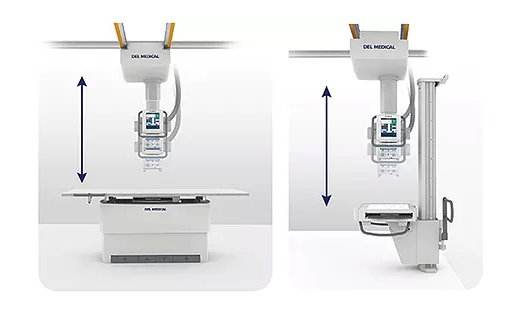

Synchronized motorized movement of the tube crane’s vertical axis maintains precise centering between the X-ray tube and image receptor. Available functions include vertical tracking to the wall stand, SID tracking to the elevating table, or horizontally positioned wall stand. The result is quick, accurate alignment without the extra time and effort needed to make additional manual adjustments.



Del Medical OTC18T

Elevating Table

The durable EV800 elevating four-way float top table delivers outstanding safety and usability. Featuring an exclusive four-point lift system and exceptionally quiet motor-drive, its smooth, scratch resistant table top lowers to a height of just 22” to ensure stress-free patient transfers and adjustments. Offering a high patient weight capacity of up to 800lbs (363 kg), stable continuous movement is possible through conveniently placed recessed foot treadles and table-side controls, suitable for increasing technologist performance and satisfaction.

EV800 and Accessories



Tilting Wall Stand


Del Medical OTC18T
The VT300 wall stand features a tilting image receptor, promoting comfort and precision for standing or seated examinations. Every adjustment is precisely counterbalanced to allow smooth operation with light effort applied by the technologist. This makes the VT300 accommodating to all users regardless of size or strength.

VT300 and Accesories



Del Medical OTC18T



Optional Rotating Tray
The easy-to-use rotating tray enables manual rotation of the DR detector for use inside all Del manufactured tables and wall stands. Stable one-handed operation supports fast portrait to landscape positioning without ever removing the detector from the tray. Fully extended steel slides activate locking mechanisms to assure detector protection when loading and unloading. Designed to accommodate a wide array of ISO 14 x 17” cassette-sized detectors.



Technical Specifications

Tube Crane

Vertical telescope travel range: 70.8" (1800mm) with minimum 32.7" (830mm) focal spot floor distance with a 9' ceiling height
Longitudinal travel range: Standard 14' rail included, 136.2" min. (3460mm) With optional rail extensions: 219.9" max (5585mm)
Transverse travel range: STD 10' Bridge with 9.8' (3m) transverse carriage: 86.6" min. (2200mm) With 13' bridge & 13.1' (4m) transverse carriage: 139.7" max.(3550mm)
Longitudinal detent positions: Configurable during installation
Tube rotation range (horizontal axis): -120°, +120°
Detent positions at -90°, 0°, +90°
Tube rotation range (vertical axis) -182°, +154°
Detent positions at -180°, -90°, 0°, +90°
Weight: Approximately 831 lbs. (377 kg) with tube & collimator
Power Requirements: 110/240 Vac. 50/60 Hz, 700 VA

EV800 Elevating Table

Patient load capacity: 800 lbs. (363 kg)
Table base length: 53" (135 cm)
Table base width: 25" (64 cm)
Table top movement: Longitudinal, ± 21.25" (54 cm)
Transverse, ± 4.5" (11.4 cm)
Variable height: 22.25" (56.5 cm) to 34.25" (87 cm)
Bucky travel: ± 8.5" (22 cm)
Table top length: 86.5" (220 cm)
Table top width: 36" (91 cm)
Weight: 563 lbs. (256 kg)
Power requirements: 120 VAC or 230/240 VAC
Options: - 78" (198 cm) table top length
- 32" (81 cm) table top width
- Lateral cassette holder
- Table-side patient handgrips
- Rotating cassette tray

VT300 Tilting Wall Stand

Receptor tilt range: +90°/ 20°
Vertical travel range, vertical receptor: 15.5" (39.4 cm) to 71.1" (180.6 cm)
Vertical travel range, +90° receptor: Minimum 25.5" (64.8 cm)
Height: 83.1" (211 cm)
Depth, vertical receptor: 30" (76 cm)
Receptor width: 24.6" (62.5 cm)
Receptor height: 26.5" (67.3 cm)
Weight: 765.5 lbs. (347.2 kg)
Weight, without counterweights: 368.5 lbs. (167 kg)
Options: - 8" (20 cm) extension box
- Overhead patient handgrips
- Rotating cassette tray
