FWFC System

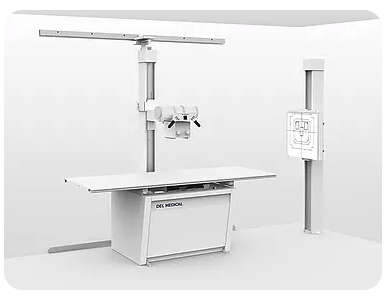

Del  Medical FWFC System



Premium floor mounted system with LCD touchscreen and vertical tracking







Affordable Quality and Reliability
The FWFC System offers an affordable, flexible solution designed for medical imaging centers and urgent care facilities looking to maximize space and minimize room modifications. Its secure floor and wall mounted rails allow for effortless longitudinal travel and quick positioning.

This system is the most affordable radiographic system in the Del Medical product line, but its outstanding build quality and performance make it a perfect fit for low throughput facilities looking to enhance their diagnostic imaging capabilities.




Del Medical FWFC System

Compact Precision

The rotating tube stand offers exceptional versatility and accuracy. Its pressure activated 180° column rotation, centering detent, electric vertcial and longitudinal locks, and 9" transverse travel provide technologists with fast positioning and comprehensive accessibility.









RT100 Table
Elevating Table
The RT100 table features a 700 lbs. patient weight capacity and a stain resistant floating table top which glides freely on a precision roller bearing system. Float top movements are safely controlled by heavy-duty electric locks, activated by a conveniently placed foot treadle release. The 17” x 17” standard bucky tray can accommodate any cassette sized detector with ease. Its all steel structure and welded base provides maximum strength and reliability.

In addition, the RT100’s pedestal base can be used to store generator electronics making it a great space saver.

RT100 and Accessories



Del Medical VS100

Ergonomic Wall Stand
The ultra compact VS100 upright is powered by an electric lock release handle and dual counterweight cables for added patient and user safety. Its expansive vertical travel of 58” (148 cm) enables a complete range of exams from skull to weight bearing knee and ankle exams.










Del Medical OTC18T



Optional Rotating Tray
The easy-to-use rotating tray enables manual rotation of the DR detector inside the RT100 table. Stable one-handed operation supports fast portrait-to landscape positioning without ever removing the detector from the tray. Fully extended steel slides activate locking mechanisms to assure detector protection when loading and unloading. Designed to accommodate a wide array of ISO 14 x 17” cassette-sized detectors.







Specifications

Ceiling height: Minimum 96" (244 cm), Maximum 116" (295 cm)
Vertical travel: Minimum 12" (26.5 cm), Maximum 73" (189 cm)
Longitudinal travel: 96" (244 cm) with 8 ft. rail
Rail longitudinal length: 8 ft. standard. 12 ft. and 6 ft. optional
Transverse travel: 9" (23 cm)
Column rotation: ±180° with detents 0°, 90°, 90°
Tube rotation: +180°, -180°

RT100 Radiographic Table

Patient load capacity: 700 lbs. (317 kg)
Table base length: 43" (109 cm)
Table base width: 29" (74 cm)
Table top length: 86.6" (220 cm)
Table top width: 32" (81 cm)
Table top height: 33" (84 cm)
Longitudinal travel: 54.5" (138 cm)
Transverse Travel: 9.8" (25 cm)
Table top to film distance: 3.3" (8 cm)
Bucky Travel: Longitudinal 11.4" (29 cm) Allows for 65" (165 cm) of complete longitudinal radiographic coverage
Weight: 387 lbs. (176 kg)
Power requirements: 120 VAC or 230-240 VAC
Options: - 78" (198 cm) table top length
- 32" (81 cm) table top width
- Lateral cassette holder
- Table-side patient handgrips
- Rotating cassette tray
- Compression band

VS100 Wall Stand

Height: 87" (220.5 cm)
Vertical Travel Range: 58" (148 cm)
Depth : 13" (33 cm)
Receptor width: 23" (59 cm)
Receptor height: 23" (59 cm)
Weight (with receptor): 258 lbs. (117 kg)
Options: - Floor mount kit for freestanding version
- Wall mount bracket extension kit
- Rotating cassette tray
