RadiForce MX191

1MP 48cm (19") COLOR LCD MONITOR

Eizo MX191

Calibration compliant with the DICOM Part 14 standard. This high cost performance narrow bezel 19" monitor presents a space-efficient and high-volume installation solution to the space limited environment.


Features

  • DICOM Part 14 Compliant
    • To ensure the most accurate and consistent shadings possible, EIZO carefully measures and sets every grayscale tones on the production line to produce a monitor compliant with DICOM Part 14.
  • Simplified Calibration to DICOM Part 14
    • With the bundled RadiCS LE quality control software, the monitor's backlight sensor performs simplified calibration compliant with the DICOM Part 14 standard to correct the brightness and grayscale tones of the monitor. This reduces the time spent administering to the monitor.
  • Brightness Stabilization
    • At startup or upon wakeup, the EIZO patented drift correction function quickly stabilizes the brightness level. In addition, a sensor measures the backlight brightness and compensates for brightness fluctuations caused by the ambient temperature and the passage of time.
  • Mode Selection for Optimum Viewing
    • Selectable with the front panel buttons, the CAL Switch function allows for various calibration modes of different modalities such as CR, CT, and endoscope images. Furthermore, auto mode settings can be made with the Auto CAL Switch function.
  • Handy Partitioning for Widescreen Monitor and Multi-Monitor Environments
    • EIZO ScreenSlicer is a monitor software utility that allows an entire screen to be effectively used though partitioning. Multiple windows can be easily aligned and dropped into the partitioned areas in single- or multi-monitor environments for convenience.
  • Backlight Saver with Screen Saver
    • With ScreenManager Pro for Medical utility software installed, the Backlight Saver function turns off the monitor's backlight when the screen saver is activated, and turns it on again when the computer comes out of screen saver mode. This function helps to reduce power consumption when the monitor is used for a prolonged period of time.
  • Backlight Saver with Viewer Application
    • By setting the Backlight Saver function to operate with viewer application, the monitor's backlight is on while the viewer is being used and the backlight is off while the viewer is not being used.
  • Ergonomic Design for Improved Operability and Less Fatigue
    • The height, swivel, and tilt adjustable stand offers added flexibility and viewing comfort.
  • Customer Assurance with Medical Standards
    • The monitors meet the strictest medical, safety, and EMC emission standards.
  • 5 Year Warranty
    • EIZO and its authorized distributors offer a five-year limited warranty.


Specifications

Cabinet Color Black
Panel
Type Color (VA)
Backlight LED
Size 48 cm / 19.0"
Native Resolution 1280 x 1024 (5:4 aspect ratio)
Viewable Image Size (H x V) 376.3 x 301.0 mm
Pixel Pitch 0.294 x 0.294 mm
Display Colors 8-bit colors: 16.77 million from a palette of 68 billion colors
Viewing Angles (H / V, typical) 178° / 178°
Brightness (typical) 300 cd/m2
Recommended Brightness for Calibration 170 cd/m2
Contrast Ratio (typical) 2000:1
Response Time (typical) 20 ms (on / off)
Video Signals
Input Terminals DVI-D x 1, D-Sub mini 15 pin x 1
Digital Scanning Frequency (H / V) 31 - 64 kHz / 59 - 61 Hz
Analog Scanning Frequency (H / V) 24.8 - 80 kHz / 50 - 75 Hz
Sync Formats Separate
USB
Function 1 upstream
Standard USB 2.0
Power
Power Requirements AC 100 - 120 V, 200 - 240 V: 50 / 60 Hz
Maximum Power Consumption 41 W
Typical Power Consumption 19 W
Power Save Mode 0.8 W or less
Power Management Digital: DVI DMPM
Analog: VESA DPM
Sensor Backlight Sensor
Features & Functions
Brightness Stabilization Yes
Preset Modes CAL Switch
OSD Languages English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
Net Weight 6.2 kg
Net Weight (Without Stand) 4.1 kg
Hole Spacing (VESA Standard) 100 x 100 mm
Certifications & Standards (Please contact EIZO for the latest information.) CE (Medical Device Directive), EN60601-1, UL60601-1, CSA C22.2 No. 601-1, IEC60601-1, VCCI-B, FCC-B, Canadian ICES-003-B, C-tick, RoHS, China RoHS, WEEE, CCC, GOST-R
Supplied Accessories (May vary by country. Please contact EIZO for details.) AC power cord, signal cable (DVI-D - DVI-D), USB cable, Utility Disk (RadiCS LE, ScreenManager Pro for Medical, user's manual)
Warranty Five Years

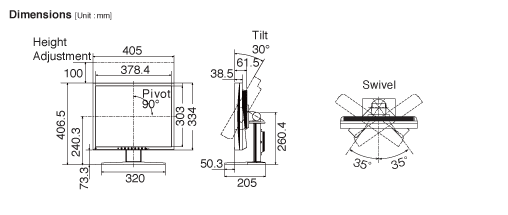

Dimension Drawing PDF
