Del Medical MT500

Highly maneuverable mobile table with a 500 lb. patient weight capacity

Del Medical EV800Flexible Table Option

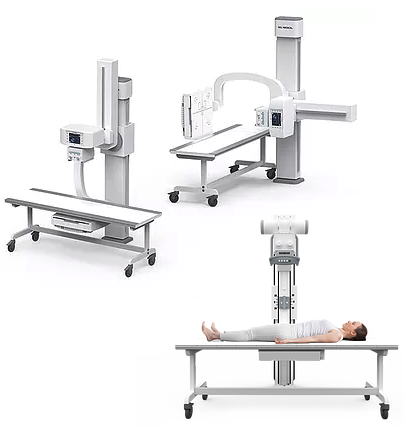

The Del Medical MT500 mobile radiographic table is ideally suited for U-Arm and Straight Arm systems located in imaging centers, orthopedic clinics and private practices. Additionally, it can be easily paired with an overhead tube crane or floor mounted tube stand to offer a highly economical table option.

It features a heavy-duty steel frame for maximum stability and a stain-resistant fiber-resin tabletop. Its large-diameter casters provide smooth movement, swivel 360°, and have easy, yet reliable, foot locks.

Featured Options

Del Medical MT500

Grid Cabinet with Tray
The cassette/detector cabinet can be added to expand use to mobile, overhead, and floor mount system configurations.

Del Medical EV800

Table Side Handgrips
These sturdy handgrips can be mounted along the entire length of both sides of the table top to enhance patient safety.

Del Medical EV800

Lateral Cassette Holder
This adjustable holder can be mounted alone both sides of the table top allowing for access to a variety of cross-table lateral views.


Patient weight capacity: 500 lbs. (226.8 kg)
Table top length: 80 in. (203.2 cm)
Table top width: 26 in. (66.1 cm)
Table top height: 27.9 in. (70.9 cm)
Weight without cabinet: 164 lbs. (74 kg)
Weight with cabinet: 201 lbs. (91.2 kg)
Table options: Grid cabinet with tray
Table side patient handgrips
Lateral cassette holder
Compression band
