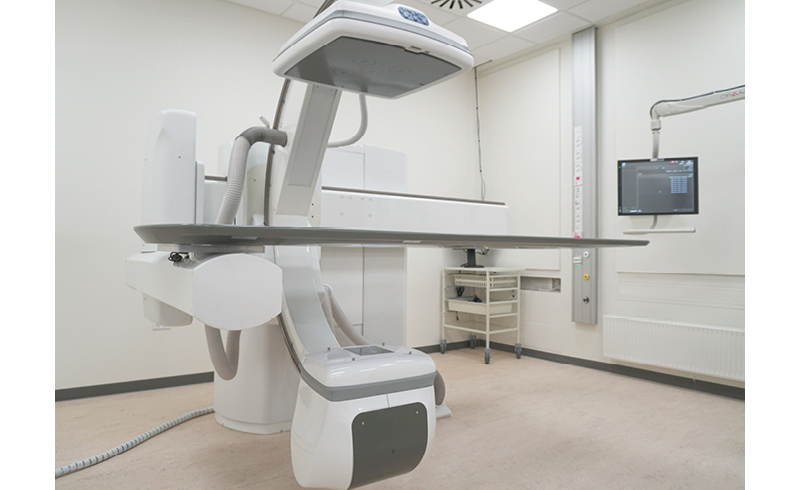

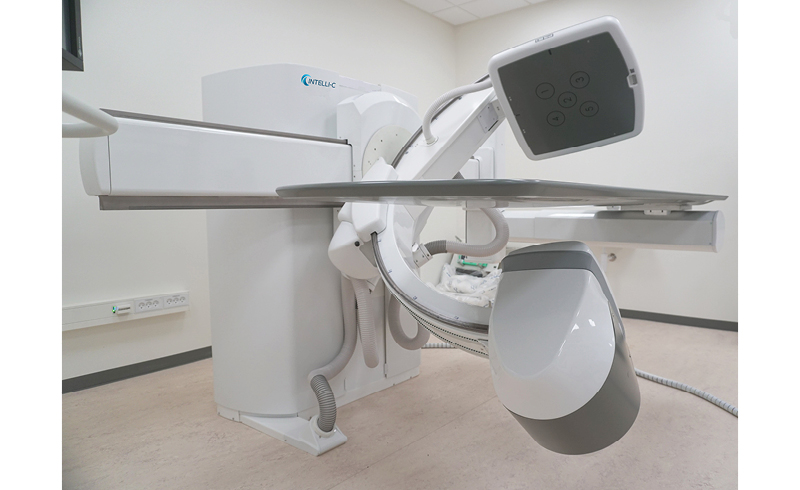

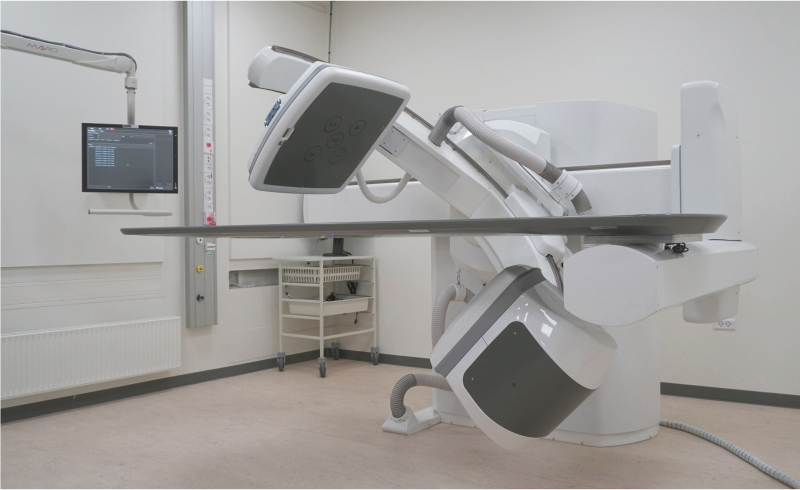

Intelli-C Tilt-C

"Tilt-C technology that delivers true imaging flexibility."


Improved Efficiency and Workflow

  • Programmable, automatic C-arm positioning provides improved throughput and easy access around patient table
  • The “Save and Restore” feature allows users to save any position permanently, either prior to or during an exam for fast positioning
  • Rapid and intelligent C-arm motion allows for precise angulation and maximum versatility


Advanced System Capabilities

  • Industry-leading table width of 27.5 inches holds a weight limit of 660 pounds which offers the ability to image bariatric patients
  • The carbon fiber table, low-dose software options, virtual collimation and radiation-free positioning help reduce dose to patients and staff
  • FPD travel of 76 inches provides exceptional head-to- toe coverage without the need to move the patient


Best in Class Imaging

  • Industry-proven cesium iodide at panel detector ensures optimal reliability
  • Static and dynamic acquisition capabilities offer maximum flexibility
  • Flat panel area of 17 x 17 inches covers more anatomy to accommodate a multitude of procedures
  • Real-time image optimization provides unparalleled image quality
  • Optional DSA software offers a true multipurpose solution


Versatile Design Features

  • Intelli-C’s uncompromising flexibility allows for the table’s support arm to be configured on the left side of the system for open patient access during image-guided endoscopic procedures
  • Vertical table elevation starts at 20 inches off the floor for safe and easy patient loading
  • Integrates easily with equipment such as monitors, lamps, and booms to optimize user experience

Industry-Leading Image Processing

The Varex PaxScan® 4343CB high quality at panel detector ensures image quality is optimized in even the most challenging cases.
  • Flat panel detector is 17 x 17 inches
  • High-resolution micron pixel pitch of 139
  • DAP meter for dose recording to PACS
  • Virtual collimationü Radiation-free positioning
  • Removable grid

Advanced Ergonomics

inControl remote and tableside touchscreen monitors provide easy access to all functions for system movements and image optimization.
  • Large, versatile table accommodates maximum weight of 660 pounds
  • In-room console allows for height adjustment
  • SmartPanel controls on FPD provides tableside control of all system movements
  • inTouch sensors on joysticks provide added security against unintended system movements
  • Radiation shield is easily adjustable
  • Multiple dose reduction protocols available

Optimal Movement Ranges

Intelli-C’s design and inMotion auto positioning technology enables expanded range of motion to maximize utility.
  • Left- or right-side suspended table
  • Table tilt: +- 90 degrees
  • Transverse table top range of 23 inches
  • Adjustable table height ranges from 20 to 60 inches dependent on system position
  • (AP) SID range of 40 to 60 inches
  • Patient coverage of up to 76 inches
  • 999 auto positions available with on-demand position save
  • Pre-programmed, single-touch system movements allow for quick positioning

Compact Design

Intelligent engineering ensures that the Intelli-C will fit into most conventional R&F suites which minimizes costs and reduces downtime.
  • Small footprint ensures budgets are not compromised and installation time is minimized
  • Can be installed in a room as small as 13 x 13 feet
