FDR D-EVO II DR detectors are easy to use, ultra-lightweight and rugged – made to work with you

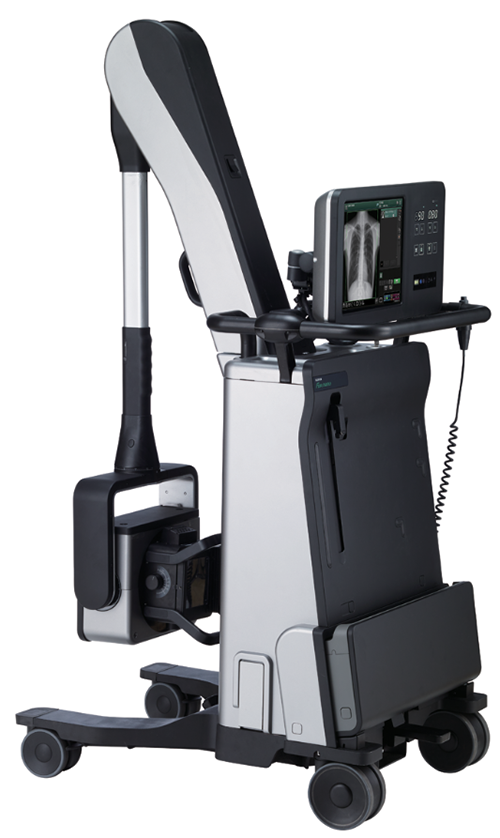

in busy hospital environments.Simplify your everyday mobile imaging with the FDR AQRO, a complete
mini-digital x-ray system that combines the high sensitivity of Fujifilm's D-EVO II detectors and
our refined image processing advancements to generate high resolution images with low patient
Smooth maneuverability allows you to go anywhere with this
ultra-compact system. At just 198 lbs., the FDR AQRO is 80% lighter than traditional mobile x-ray
Four swiveling wheel casters allow precise, easy positioning and
travel in any direction, and the ability to spin the system in place in tight spaces.
Easy positioning changes enable sequential exposures of the chest
and abdomen to be acquired quickly and easily for efficient technologist workflow.
The articulating control panel allows rotation, tilting and
height adjustment for instant image confirmation from any angle.
The small lightweight design and extended reach of the tube head
allows one-hand operation for easy exam positioning.
High-performance Li-ion battery power enables up to 12 hours of
continuous use at 20 exposures/hour, 15-minute quick charge for 1 hour (20 exposures) and rapid
4-hour charging for full charge. FDR AQRO can also be used while plugged into AC power.
The detector holder area features built-in charging and
initialization, a keyed lock to safely stow your valuable detector and a tilting design for detector
Primary surfaces are coated with Fujifilm's exclusive Hydro AG antibacterial coating, providing an added
safety measure in infection controls. Virtual Grid™
(included standard) image processing simulates grid use for improved image quality for images
acquired without a grid, and lower dose acquisition compared to grid exams. Dynamic
Visualization™ II (included standard), our latest image processing, adjusts image quality
throughout the entire exposure field based on intelligent feature and thickness recognition.
Compatible with FDR D-EVO II CsI wireless detectors in standard
14x17,'' full field-of-view 17x17,'' and our unique 24x30cm size, all featuring Fujifilm's patented
ISS technology and noise reduction circuitry for exceptional image quality and performance at lower
Driven by Fujifilm Innovation
Intelligent image processing that replaces the use of a grid
The FDR AQRO incorporates FDR D-EVO II
CSIdetectors which feature Fujifilm's patented Irradiated Side Sampling (ISS) technology for
higher resolution images and improved dose efficiency. ISS increases sharpness and DQE by reducing
scatter and blur. Fujifilm's revolutionary innovation positions its capture electronics at the tops of
the crystals where data is strongest and sharpest, yielding exceptional detail and image quality at
FDR AQRO's onboard technologist console includes Fujifilm's latest Dynamic
Visualization II image processing upgrade, which automatically recognizes thickness and density
characteristics to adapt the optimum image processing parameters throughout the entire exposure field,
producing exceptional images with higher detail and contrast levels, and providing improved window and
leveling capability for diagnosis in PACS.
Additional advanced functions include:
II (included standard): Our latest evolution in image processing. Dynamic Visualization
II processing uses Artificial Intelligence for auto recognition of bone, anatomy
characteristics, and orthopedic hardware. This image processing software intelligently adapts
image contrast and density, based on image, thickness and structural recognition. It improves
uniformity in both dense and thin regions for challenging images, for large anatomy and
patients, or any low dose or low penetration exams.
Virtual Grid (included
standard): processing intelligently simulates grid use, eliminating scatter effect, to improve
contrast and clarity and reduce dose by as much as 50% and reduce dose by as much as 50% for
images acquired without a grid. Useful in portable exams: simplifies acquisition and
positioning, and eliminates artifacts associated with physical grid misalignment and improper
Intuitively recognizes scatter effect in the image
Precisely tunes contrast and noise
Eliminates repeats caused from misalignment factors associated with physical grids
Customizable grid characteristics, grid lines, density and interspacing material
Can be applied to all body parts,* including chest, abdomen, head, spine, pelvis, upper and
Shortcuts for browser-based RIS and PACS from the mobile console provide valuable convenience
and simplify technologist workflow.
The onboard, full-featured technologist console provides immediate image previews, dose tracking and
exposure and deviation index features, in addition to a host of image manipulation and workflow tools. A
double-click magnification feature gives technologists the ability to zoom full screen and toggle edge
enhancement to better view PICC lines and detect patient movement. Count on fast, reliable wireless
worklist updates and transmission to PACS.
