RADspeed Pro style edition MC
"Ceiling-Suspended X-ray tube System"
A ceiling-suspended X-ray tube system with a wide range of movement
allows excellent imaging, technique flexibility and easy access to the patient. This enhanced
flexibility is ideal for imaging centers that demand high productivity to meet fast patient
throughput.
Superior Generator with High-Frequency Inverter Technology
Shimadzu's general radiographic system is equipped with an advanced generator designed
state-of-the-art high-frequency inverter technology. The 50kHz high-frequency generator consistently
produces sharp and crisp X-ray images, an achievement attributable to the advanced generator's
higher quality X-ray output with a very small kV ripple and highly accurate timer control. These
characteristics, inherent in a high-frequency generator, reduce radiation dose to patients by
eliminating lower energy X-rays (soft X-rays), making it superior to and safer than other types of
generators, e.g. twelve-pulse generators. Shimadzu generators feature an operator-friendly function
called Sequential Multi-directional Radiography. This feature allows a radiographer to enter and
utilize up to 7 sequential preset parameters in memory. The intelligent system automatically steps
to the next preset exposure factors at the end of every exposure. This unique function is another
Shimadzu innovation that enhances productivity and user-friendliness.
Long Vertical Travel and Smooth Operability
The long vertical travel range(1600mm), provides sufficient SID (Source Image Distance) for
images in the supine position as well as for low position images in the standing position.

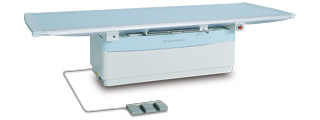

Heavy Duty Height-Adjustable Bucky Table with 4-way Floating Table Top
The new Bucky table BK-120MK can easily lift up to 200kg. Patient positioning is made easier
with the extremely smooth-moving table top. The unit's minimum height of 535mm makes it easy for
old and young patients alike to get on and off the examination table. The BK-120MK includes a
Bucky device with a cassette tray and grid. The fixed height table configuration BK-12HK is
available as well.
Speed Chest *OPTION

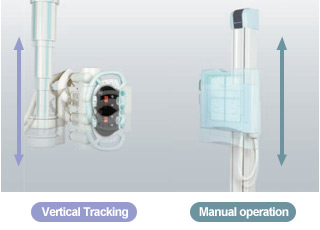

Synchronized Vertical Movements of X-Ray Tube Unit and Bucky Unit
The focal
point of the X-ray tube unit moves up and down in conjunction with the vertical positioning of
the X-ray Bucky stand and X-ray Bucky table. This allows the operator to attend the patient in a
standing position while positioning the equipment.
For a table study, the X-ray tube
automatically moves to a preset SID, enabling accurate and fast positioning.
Orderly Cable Management *OPTION
Shimadzu provides a tractable cable management system along the ceiling rails that supports
smooth positioning.

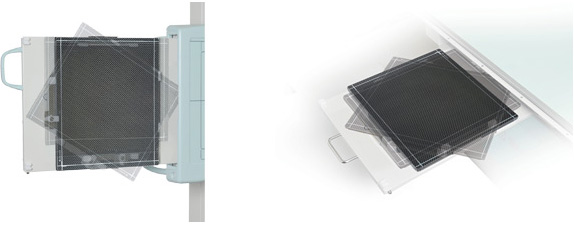

FPD Rotation Tray *OPTION
The FPD tray can be rotated 90 degree to change the orientation of 14 by 17 FPD.
